Here’s a sneak preview of my first 3d printed wooden guitar. It’s printed through a binder jetting additive manufacturing process that uses wood sawdust and bio-epoxy by a company called #Forust. Could this represent a more sustainable future for the manufacture of high-end wooden products?
The design was done using a combination of #Solidworks and #nTopology and it contains a diamond TPMS lattice structure (a sexier version of a gyroid).
The guitar includes the following example specifications:
 |
Neck |
Warmoth Pro Warhead maple neck with rosewood fret board, 22 frets, 25 1/2" scale, 42.86mm (1 11/16") width, Graphtec nut, 6150 sized jumbo frets, 10-16" compound radius fret board, white inlay dots. Walnut logo inlay
|
Body |
3D printed in wood sawdust and bio-epoxy by Forust, and sprayed with clear matt lacquer
|
Bridge |
Schaller 3D-6, 6 String Flat Mount Bridge, Black
|
Pickups |
Seymour Duncan hot-rodded pickups |
Tuning heads |
Gotoh SG510 Locking Tuners, black chrome |
Controls |
5 position Schaller Mehaswitch-P pickup select switch, 1 x Volume knob, 1 x Tone knob |
Other |
Schaller Strap Locks, Pure Tone multi-contact jack, Schaller knobs, D'Addario strings |
Weight |
Just over 4Kg, but next one already redesigned and should weigh around 3.5Kg |
Each guitar is custom made to order to suit your needs. Click HERE to email us and discuss your requirements. |

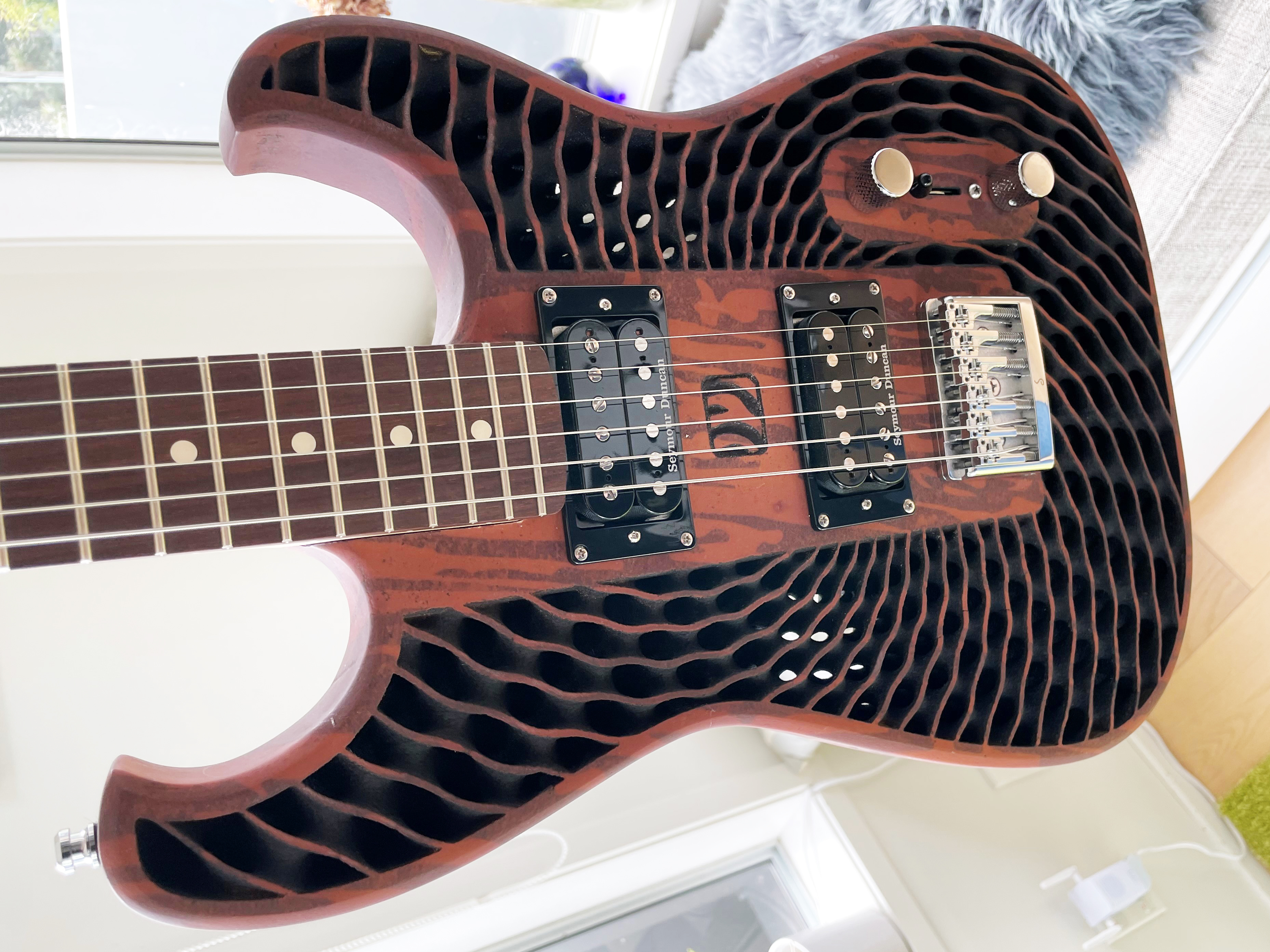

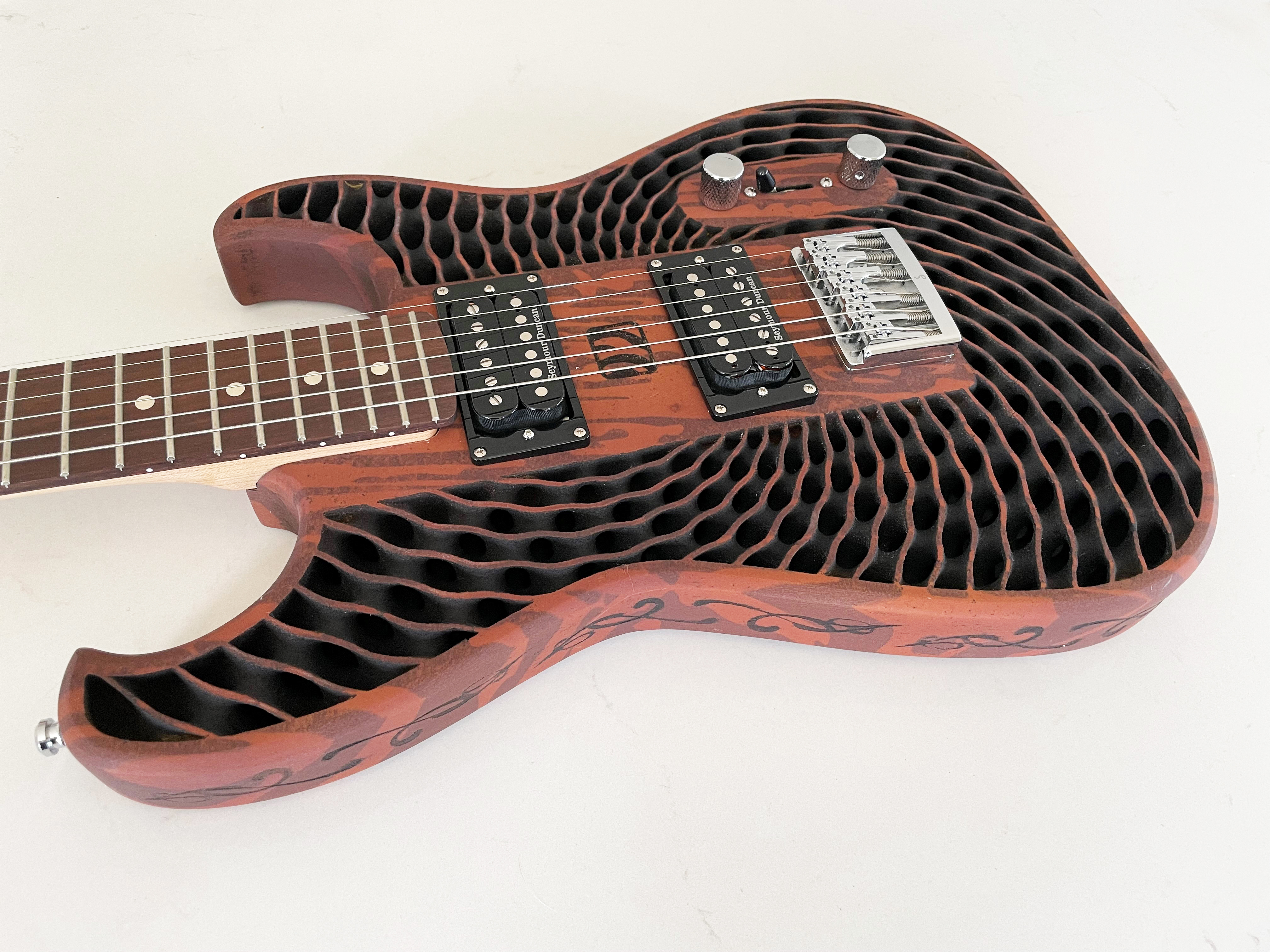

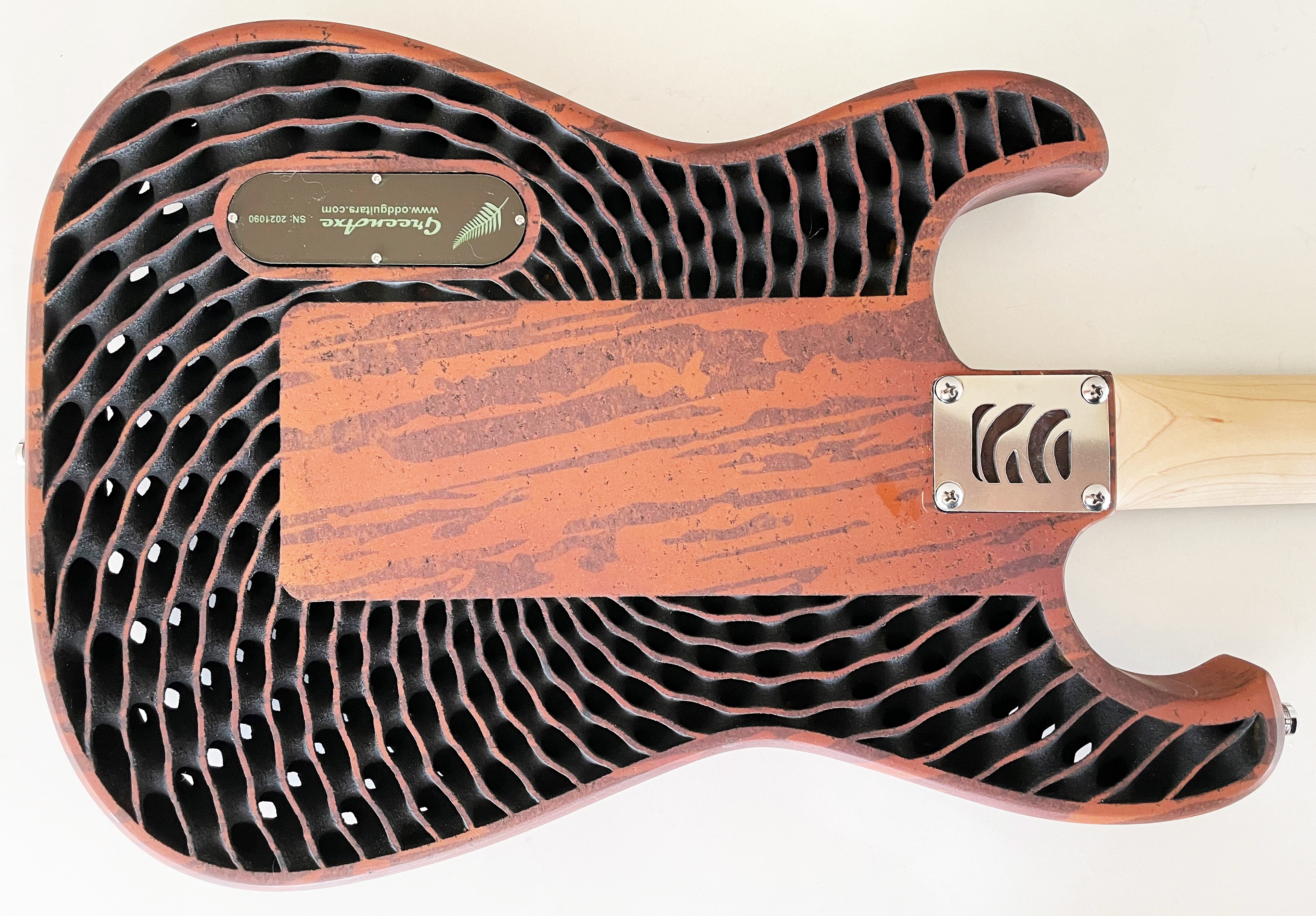

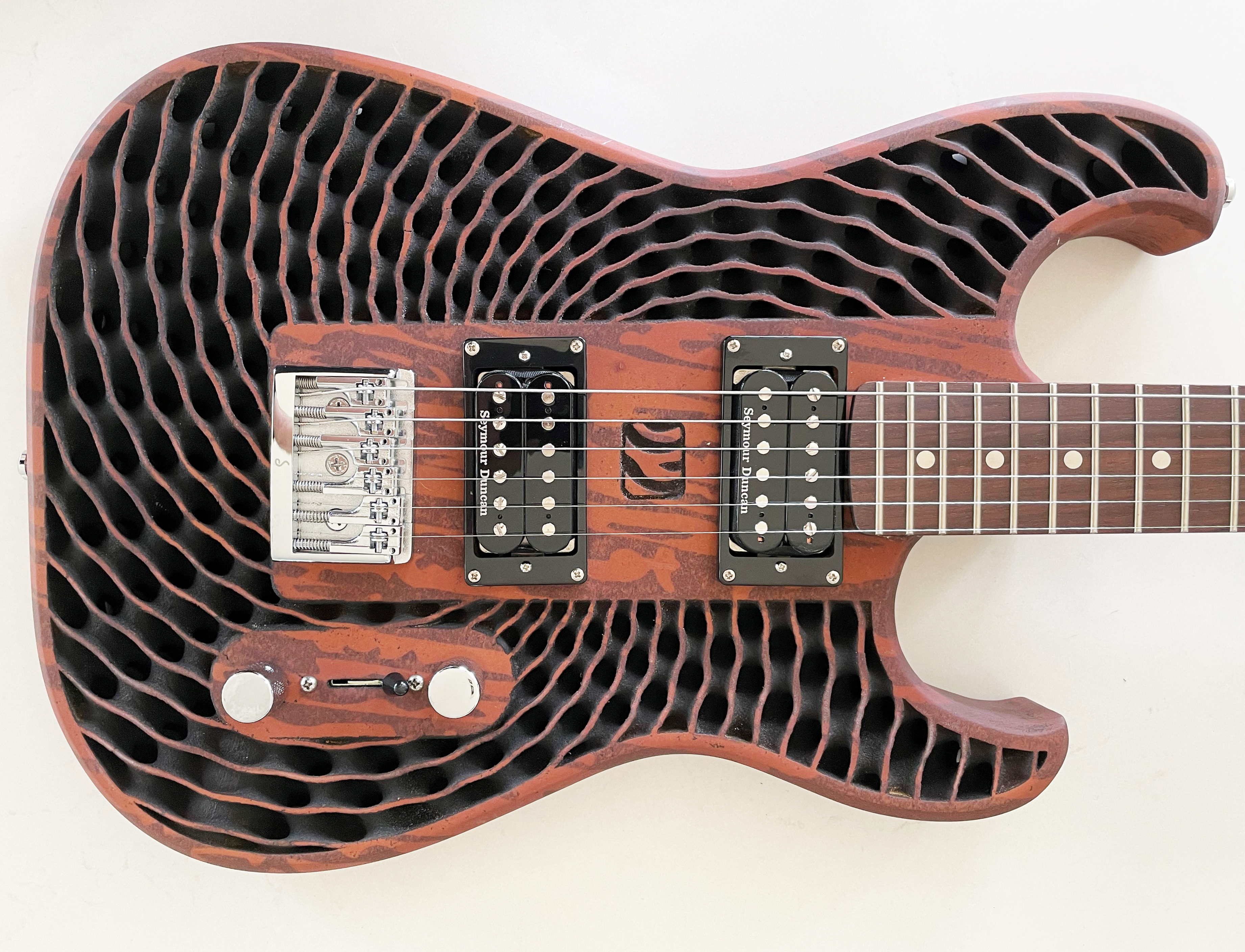

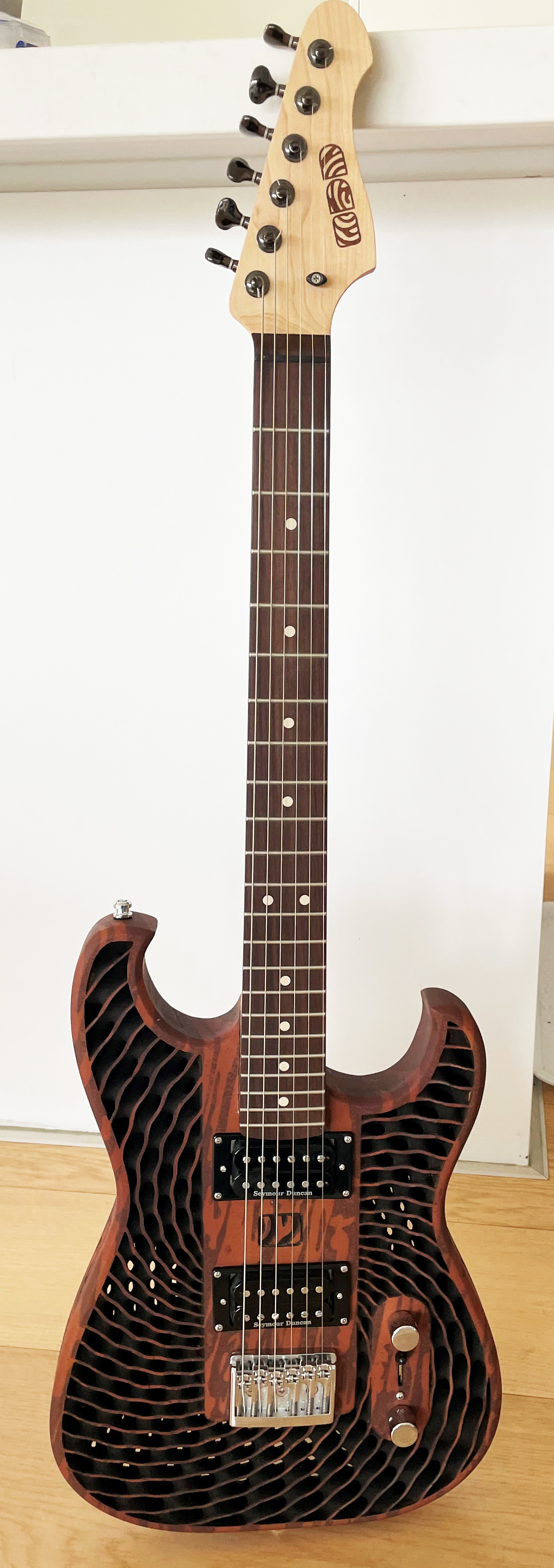

Below are pictures of some of the details of the guitar:
|
