The 4 Element Guitars

If you have five elements available, use only four. - Pablo Picasso

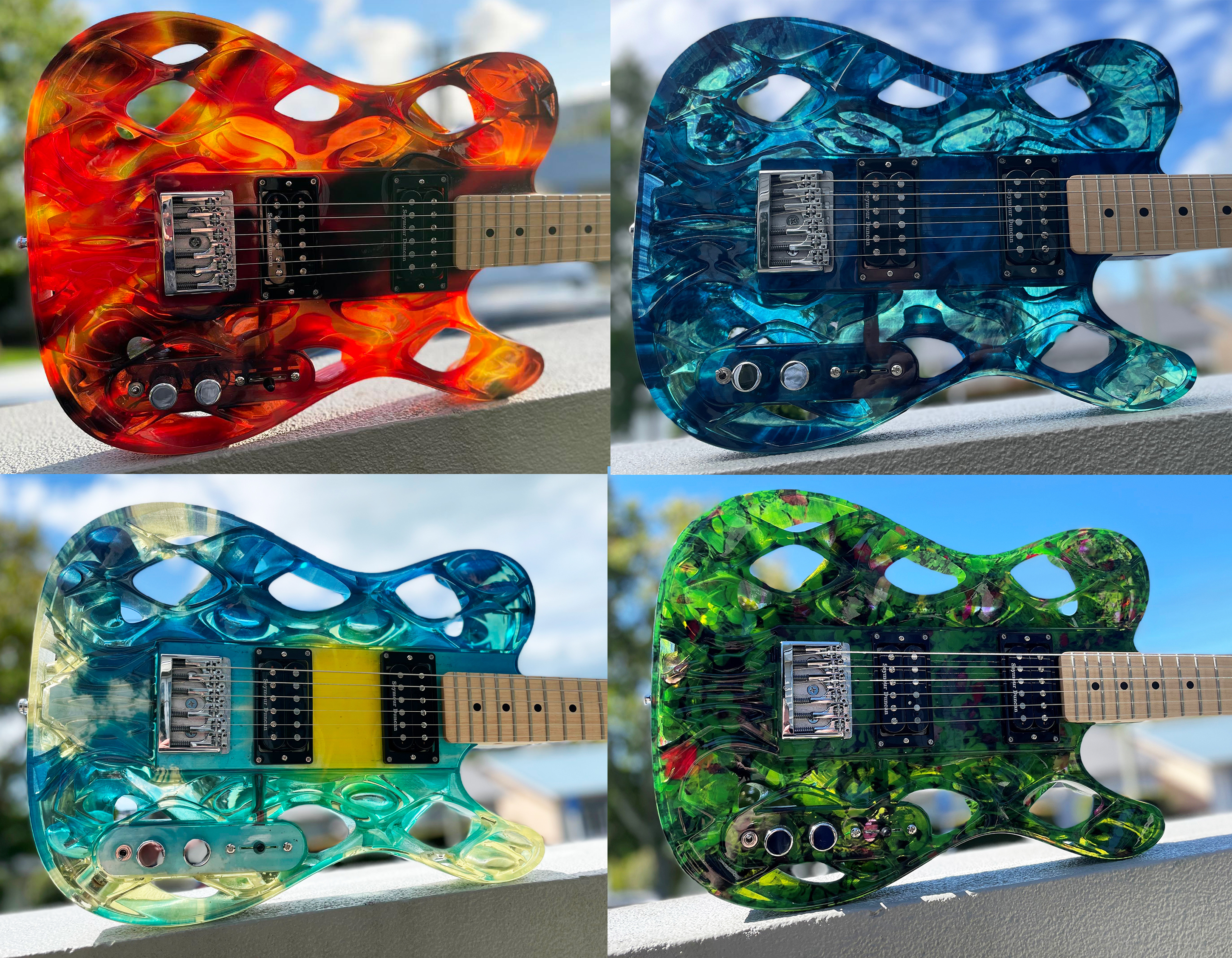

Here’s the complete four-elements collection of 3D printed guitars: Fire, Water, Air and Earth. The guitar bodies are 3D printed in full-colour translucent acrylic, And, of course, each has LEDs that light up to suit their element on the inside to go with the gloriously kitsch theme!

The guitars includes the following example specifications:

Neck

Warmoth Pro Warhead maple neck with maple fret board, 22 frets, 25 1/2" scale, 42.86mm (1 11/16") width, Graphtec nut, 6150 sized jumbo frets, 10-16" compound radius fret board, black inlay dots. Walnut logo inlay

Body

3D printed in full-colour acrylate on a Mimaki 3DUJ-553 full-colour 3D printer

Inner core

Maple inner core linging the neck to the bridge

Bridge

Schaller 3D-6, 6 String Flat Mount Bridge, chrome

Pickups

Seymour Duncan Whole Lotta Humbucker pickups

Tuning heads

Gotoh SG510 Locking Tuners, chrome

Controls

5 position Schaller Mehaswitch-P pickup select switch, 1 x Volume knob, 1 x Tone knob

Other

Schaller Strap Locks, Pure Tone multi-contact jack, Schaller knobs, D'Addario strings

Weight

4.3Kg



Each guitar is custom made to order to suit your needs. Click HERE to email us and discuss your requirements.

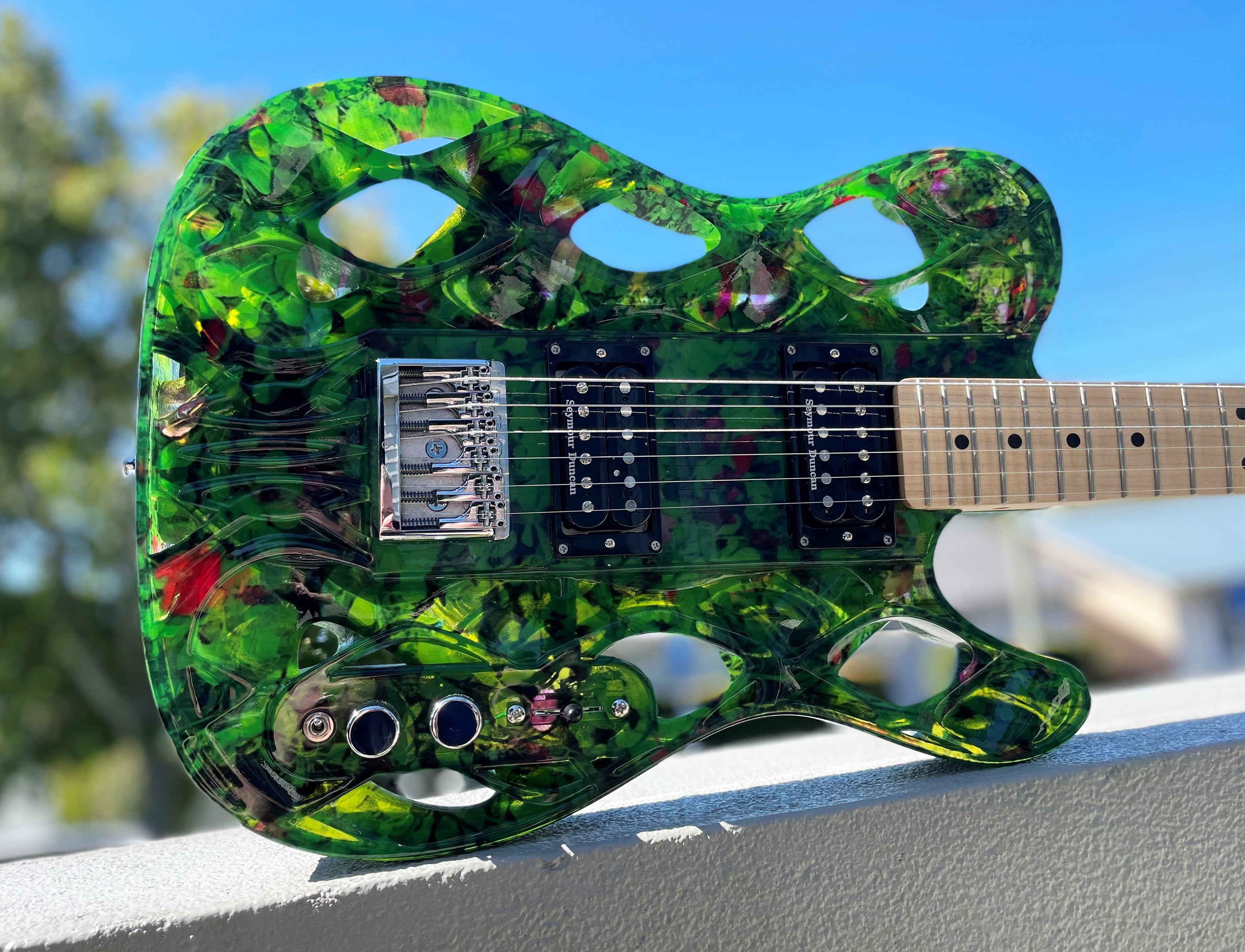

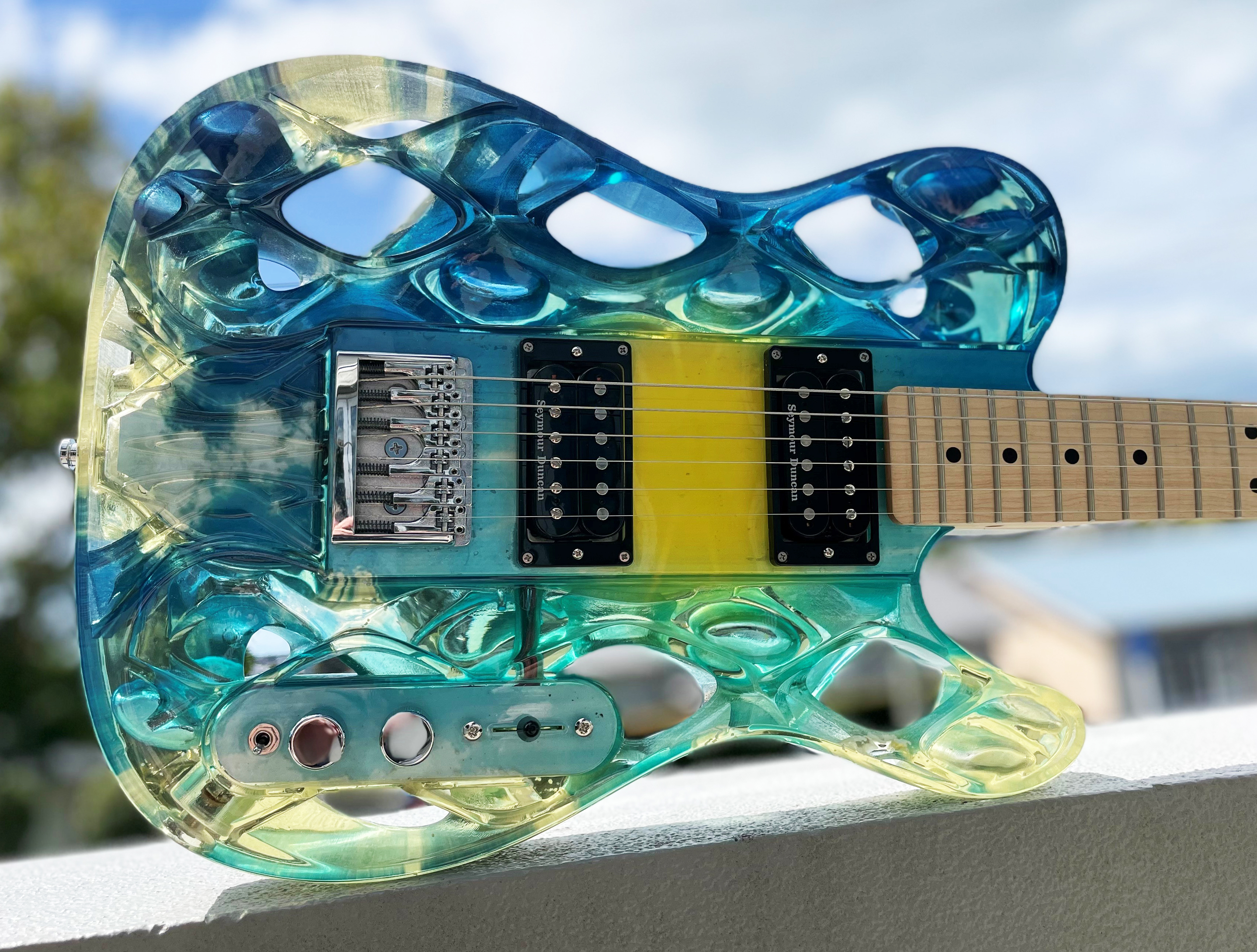

Below are pictures of some of the details of the guitar:
