Atom 3D Printed Bass Guitar

The Atom 3D printed bass guitar: A bass guitar with an internal atom with spinning electrons. The bodies are printed, using Selective Laser Sintering, by 3D Systems in the USA, on an sPro 230 SLS system. The material being used for these guitars is Duraform PA which is a very strong form of Nylon. The resolution for the prints was 0.1mm (which means that each layer that makes up the guitar body is 0.1mm thick). The guitars feature a wooden inner core (choices of Mahogany or Maple, etc.) that links the neck to the bridge, which allows us to customize the sustain and tone of the instrument to suit the musician, and a number of options for hardware, etc.

Price: US$3500, incl hard case, excl shipping.

This includes the following example specifications:

Neck

Warmoth Pro Angled maple neck with rosewood fret board, 22 frets, 34" scale, Corian nut, 6150 sized frets, inlay dots


Body

3D printed Duraform PA outer body, with mahogany inner core, Dyed to your choice of available dye colours, and sprayed with clear matt lacquer


Bridge

Schaller 463, 4 String Roller Bridge, Chrome


Pickups

EMG Hz 35 passive pickups.



Tuning heads

Gotoh GB7 Bass Tuners, Chrome



Controls

Pickup select switch, 2 x Volume knob, 2 x Tone knob



Other

Schaller Strap Locks, D'Addario strings, low-cost hard case for safe shipping (we can, however, also offer you a high quality case as an optional extra)



Weight

4.4Kg



Each guitar is custom made to order to suit your needs. Click HERE to email us and discuss your requirements.

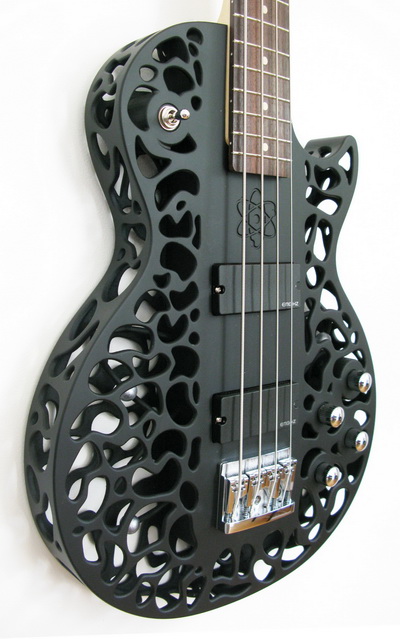

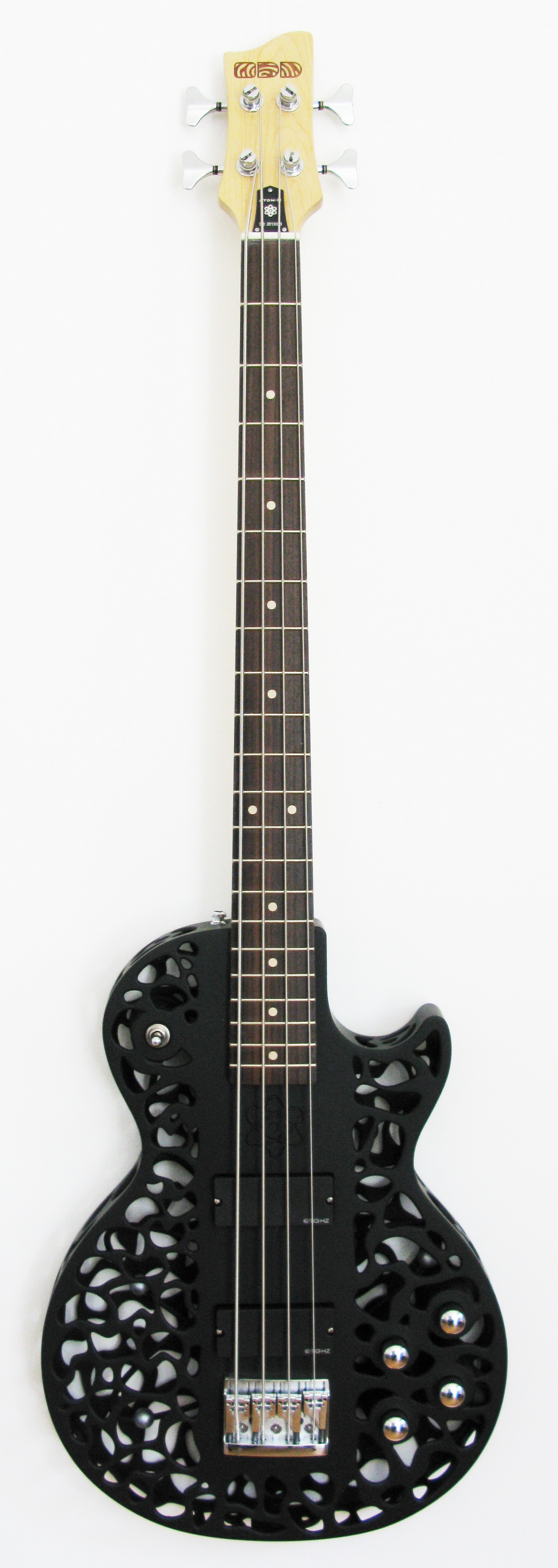

Below are pictures of some of the details of the guitar:








And, for historical sake, below are some pictures of the very first Atom Bass guitar:



The Atom 3D printed bass guitar: A Les Paul inspired bass guitar with an internal atom with spinning electrons. The bodies are printed, using Selective Laser Sintering, by 3D Systems in the USA, on an sPro 230 SLS system. The material being used for these guitars is Duraform PA which is a very strong form of Nylon. The resolution for the prints was 0.1mm (which means that each layer that makes up the guitar body is 0.1mm thick). The guitars feature a wooden inner core (choices of Mahogany or Maple, etc.) that links the neck to the bridge, which allows us to customize the sustain and tone of the instrument to suit the musician, and a number of options for hardware, etc.

Price: US$3500, incl hard case, excl shipping.

This includes the following example specifications:

Neck

Warmoth Pro Angled maple neck with rosewood fret board, 22 frets, 34" scale, Corian nut, 6150 sized frets, inlay dots

Body

3D printed Duraform PA outer body, with mahogany inner core, Dyed to your choice of available dye colours, and sprayed with clear satin polyurethane

Bridge

Schaller 463, 4 String Roller Bridge, Chrome

Pickups

EMG Hz 35 passive pickups. Active pickups available as option

Tuning heads

Gotoh GB7 Bass Tuners, Chrome

Controls

Pickup select switch, 2 x Volume knob, 2 x Tone knob

Other

Schaller Strap Locks, D'Addario EXL165 nickel wound strings, low-cost hard case for safe shipping (we can, however, also offer you a high quality case as an optional extra)

Weight

4.4Kg

Each guitar is custom made to order to suit your needs. Click HERE to email us and discuss your requirements.

Below are pictures of the bass:

Atom-B Red









copyright 2011, olaf diegel
